Unique In house Design Headpiece

  • Uses miniature headstock

          • Works with standard wall mounts and head-stock stands

          • Cool with clip on tuners

          • Keeps good hand feel at nut

  • Works with any standard strings (single ball end)

          • String locked down over a large area, so string breakage reduced compared to using set screw’s

          • Fast! re-stringing

          • Strings don’t need a pre-bend with a tool

  • Uses standard nuts

          • String to string variations in string height at the nut are possible

          • So intonation correcting nuts are possible

    • Made from 6061T6 hard anodized aluminum

          • Not zinc pot metal

Headless

  • Works better
        • Shortens and overall lightens guitar (5” shorter! 75 gm less)
        • Better balance
        • Headless have less problems from unwanted dead notes and wolf tones on neck from vibrating headstock masses
        • Better pitch to midi conversion, in midi applications
        • Tuners at the other end (same as a locked down Floyd Rose)

            • For better overall balance

            • Pic hand tuning

  •  Less unsung string; like string-locks with no head
        • Holds tune better, less to detune after large bends
        •  Removes need for dampeners for sympathetic singing
        • More responsive bending, earlier pitch change during bend

• Fender S-type neck heel shape

    • Largest number of options available with a popular aftermarket neck;

        • 21, 22, 24 frets, 22 standard

        • Most diverse back contours, woods, etc. available

        • Compound 10-16” radius standard

        • Most scale lengths available

      • Threaded inserts installed for bolts

        • Just say no to wood screws…poor hold and reuse

        • Better neck/body connection

Full Scale Lengths, 4! ...

  • Standard
    • 24.75″ Gibson
    • 25.5″ Fender, Ibanez, Jackson, Schecter, Steinberger
  • Options
    • 25″ PRS, National
    • 28.6″ Baritone, Agile
    •

Body Features

  • Ergonomic sculpted body, a mix of retro and future looks

  • Aluminum, carbon fiber, and wood; very travel friendly and encourages play

  • Al-body combined with the wood-neck stay in tune better w/ changing temp

  • Deep neck heel pocket

  • Shaped carbon fiber pickguard,  flush with body

  • Aluminum allows

    • Highly contoured back heel for easy reach-around for high notes

    • Built in bridge hardware

    • Small size from high stiffness

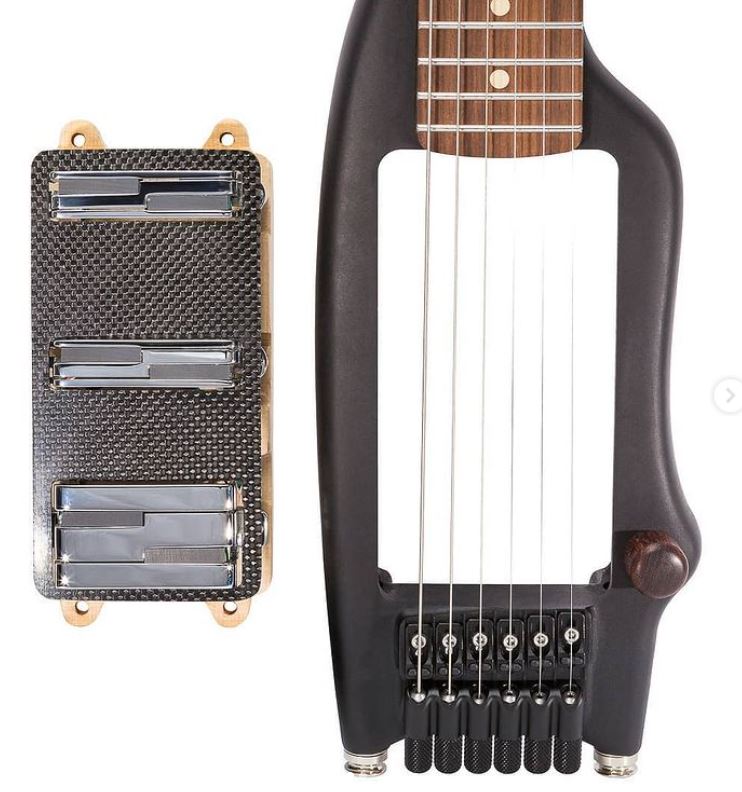

Pickup Bay Module – Multi-function

Interchangeable Pickup Module docks in Body

  • Quickly Swap Pickups
      • 5 second swapout of pickup set
      • no string, pickguard or routing removal
  • Lots of freedom to try:
      • Different mag pickup types/locations/angles
      • Rigid or soft mounting of pickups
  • Works with most SingleCoil and Humbucker pickups

Tonally connects the neck to bridge

  • Tonewood Pickup carrier connects bridge and neck as structural element in parallel with body
  • Different tonewoods /structural shapes change what gets back to the strings

Vibes in tone wood can be an easily changed sound addition

  • Piezo sensors number and location on tonewood can be added to per-string piezo sound
  • Mag Pickups mounted directly to tonewood carrier (vs. pickguard in a typical guitar)
  • TonewoodVibes change pickups movements in relation to string
